Optional Air Treatment Package
| Package Includes: |
|---|
| Ball Valve (2) |
| 12″ Flex hose (2) |
| 120 Gallon Air Receiver Tank – 380 lbs |
| Relief Valve |
| Pressure Gauge |
| Eco-Drain 30 (for receiver tank) |
| Y-Strainer |
| F16KB w/Float (55 SCFM) |
| Kryosec TBH 16 Refrigerated Dryer (56 SCFM) –19″W 21″D 22″H – 84 lbs |
| KCF 25 condensate filter |
| Multiple inlet manifold |
Select “Compressors with Accessory Package” above to add this to your order.

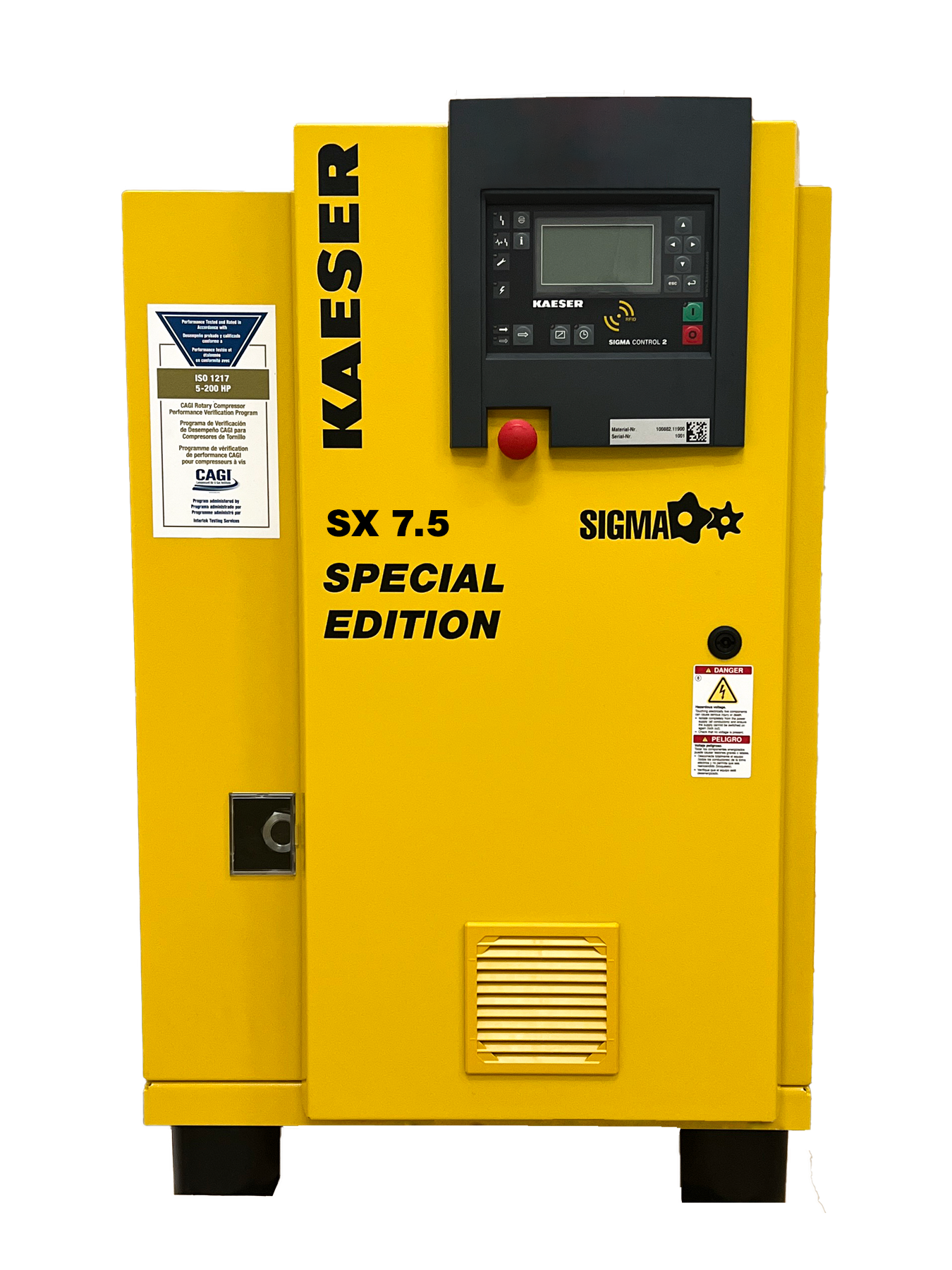

SX 7.5 Special Edition (Pair)
$10,495.00 3-phase compressors
$10,495.00 1-phase compressors
$15,245.00 3-phase with air treatment package
$15,245.00 1-phase with air treatment package
$10,495.00 1-phase compressors
$15,245.00 3-phase with air treatment package
$15,245.00 1-phase with air treatment package
Please note: Tax exemption (if applicable) will be credited back with the provision of a sufficient tax exemption document to be provided along with your order number to kaeserdeals.us@kaeser.com.
Compact design with impressive performance
Kaeser’s belt-driven rotary screw compressors provide outstanding efficiency and reliability. an energy-saving SIGMA PROFILE airend and a SIGMA CONTROL 2 controller to ensure outstanding efficiency and performance.
Your advantages
- Highly-efficient power transmission:
The quality drive belt with automatic tensioning device ensures consistent transmission efficiency and excellent drive system reliability over the entire service life. - Easy maintenance:
The housing is easily opened. All components are logically arranged and easy to access. Maintenance work is therefore made quick and simple. - Exceptionally quiet:
The soundproofed housing reduces operational noise to a minimum. Normal conversation can take place right next to the compressor.
Technical Specifications (each unit) |
|
|---|---|
| Operating Pressure (psig) | 125 |
| Capacity (cfm) | 28.3 |
| Motor (hp) | 7.5 |
| Dimensions (in) | 23.25 x 24.775 x 38.25 |
| Weight (lb) | 342 |
| Sound (dba) | 66 |
3 phase units will arrive wired for 460V.
Your local Kaeser service provider will make voltage adjustment at no-charge during the start up visit
Optional Air Treatment Package
| Package Includes: |
|---|
| Ball Valve (2) |
| 12″ Flex hose (2) |
| 120 Gallon Air Receiver Tank |
| Relief Valve |
| Pressure Gauge |
| Eco-Drain 30 (for receiver tank) |
| Y-Strainer |
| F16KB w/Float (55 SCFM) |
| Kryosec Refrigerated Dryer (56 SCFM) |
| KCF 25 condensate filter |
| Multiple inlet manifold |
Select “Compressors with Accessory Package” above to add this to your order.
